3003铝板
3003铝板
3003铝板是一种典型的铝锰防锈合金。合金成分Mn的添加略微提高了强度，同时保持了纯铝优异的可加工性和耐腐蚀性。3003铝板是一种未经热处理的合金，不能通过热处理进行强化，因此传统的冷加工方法可以提高其力学性能。此外，3003铝板具有良好的焊接性、成型性等优点，已成为“家电零部件”的热门且经济的选择。
|
合金 |
3003 |
|---|---|
|
状态 |
F,O,H12,H14,H16,H18,H19,H22,H24,H26,H28,H111,H112,H114, |
|
厚度（mm） |
0.2-10 |
|
宽度（mm） |
100-2650 |
|
应用 |
天线锅材料，动力电池外壳，汽车油箱，料仓，门板材料，标牌，管道保温、瓶盖材料、蜂窝材料等 |
应用和性能
■ 耐腐蚀性.3003铝板具有良好的耐腐蚀性，接近工业纯铝的耐腐蚀性能。能有效抵抗大气、淡水、海水、食品、有机酸、汽油、中性无机盐溶液、稀酸的腐蚀。
应用
聚合物锂电池
钎焊板式散热器

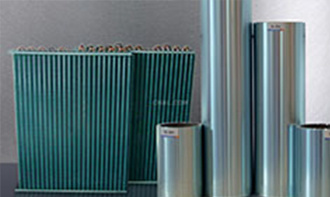

热交换器

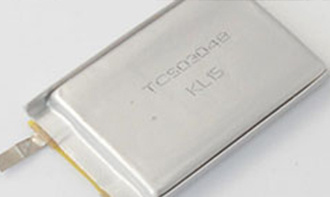

软包装锂电池
3004 Aluminum Sheet
3004 Aluminum Sheet
3004 aluminum foil is commonly used in food and beverage.It has the advantages of light weight and gloss, good barrier properties, strong light shielding, oxidation resistance, water resistance, moisture resistance, non-toxicity and tastelessness, etc.,and meets the standards for food packaging.
|
Alloy |
3004 |
|---|---|
|
Temper |
F,O,H12,H14,H16,H18,H19,H22,H24,H26,H28,H111,H112,H114, |
|
Thickness(mm) |
0.2-10 |
|
Width(mm) |
100-2650 |
|
Application |
Lamp head material, shutter material, heat sink, LCD back sheet material, |
Performance
■ High temperature and low temperature resistance, aluminum foil products made of 3004 aluminum foil will not cause deformation due to temperature changes.
■ Small pinholes, good air tightness, prevent food spoilage.
■ Good light shielding, can be used to package those items that need to be protected from light, such as tea, coffee, cream, etc.
■ Good light shielding, can be used to package those items that need to be protected from light, such as tea, coffee, cream, etc.
Application

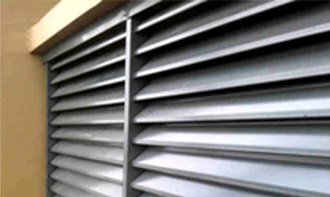

Window shades
Lamp cap material
Electrical enclosure
LCD TV backplane
3005 Aluminum Sheet
3005 Aluminum Sheet
3005 aluminum sheet belongs to 3 series Al-Mn alloy with Mn content between 1.0-1.5, and 3003,3004 aluminum sheet belong to rust-proof alloy with strong corrosion resistance.Similarly,3005 aluminum sheet is also a non-heat-treated alloy, which is cold-processed to improve its mechanical properties. However, the strength of 3005 aluminum is higher than both of them. Among them, it is about 20% stronger than 3003 aluminum sheet.
|
Alloy |
3005 |
|---|---|
|
Temper |
O~H118 |
|
Thickness(mm) |
0.1~50mm |
|
Width(mm) |
1000~2000mm |
|
Application |
bus skins, silos, antenna pan materials |
Using
heat sinks, radiators, power battery enclosures, automotive heat shields, fuel tanks, water tanks, automotive skid plates, battery explosion-proof valves, battery covers, automotive interiors, signs, cans, medical equipment,
Performance
■ Excellent Corrosion Resistance.3005 aluminum sheet can resist corrosion from atmosphere, fresh water, sea water, food, organic acid, gasoline, neutral inorganic solution and so on.
■ Excellent Corrosion Resistance.3005 aluminum sheet can resist corrosion from atmosphere, fresh water, sea water, food, organic acid, gasoline, neutral inorganic solution and so on.
■ High Plasticity. In annealing temper,3005 aluminum sheet has high plasticity. In the case of semi-cold quenching, plasticity is good, while in the process of cold quenching, plasticity is the lowest.
■ High Plasticity. In annealing temper,3005 aluminum sheet has high plasticity. In the case of semi-cold quenching, plasticity is good, while in the process of cold quenching, plasticity is the lowest.
■ Mechanical Properties. The tensile strength of3005 aluminum sheet is 140-180 MPa, and the yield strength is 0.2 (MPa) ≥115.
Application
Aluminum for louvers

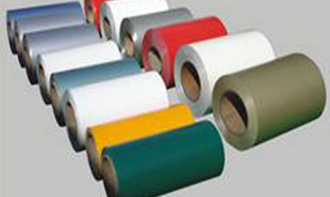

Aluminum substrate for color
Oxidized lamp cap material
Aluminum roll for cans
